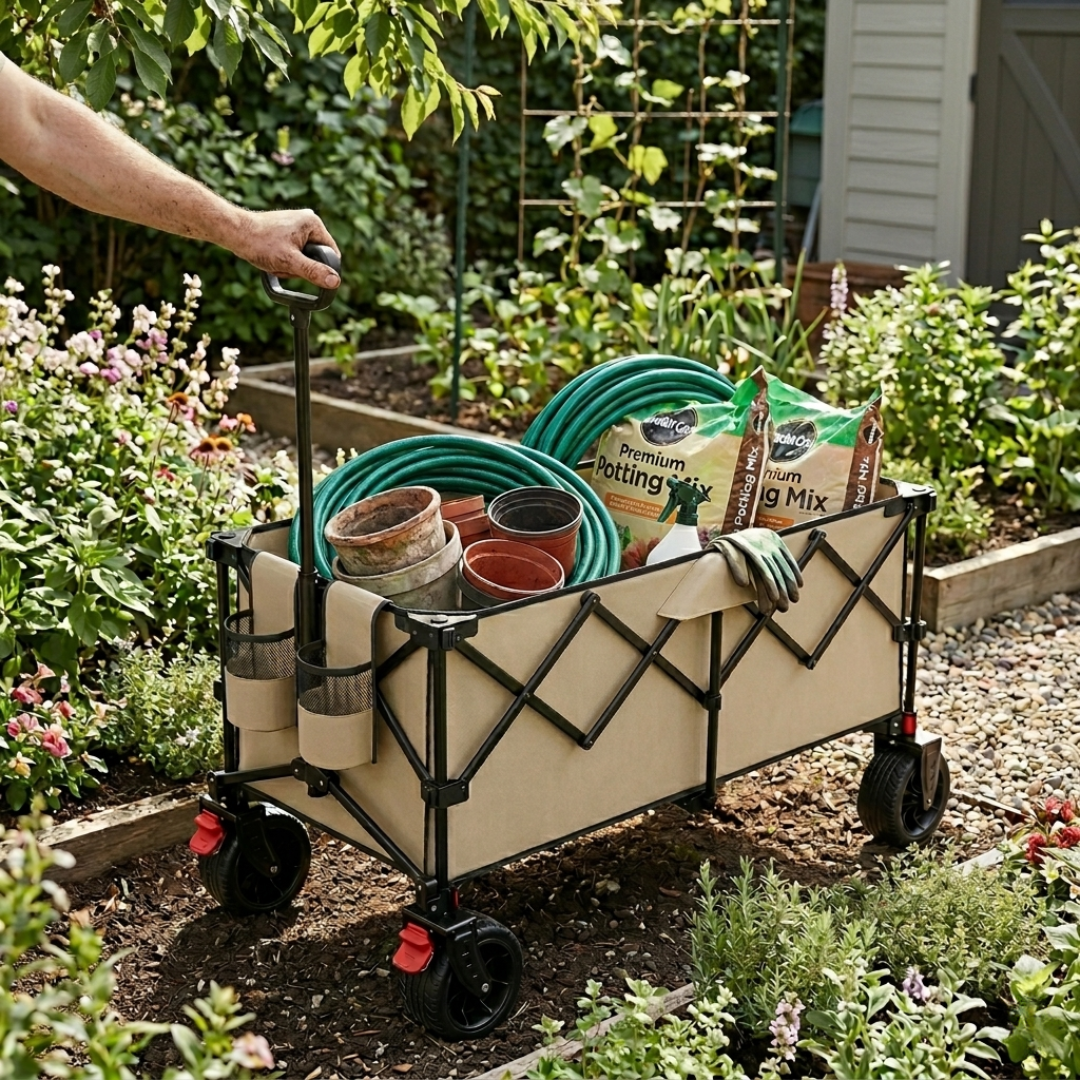

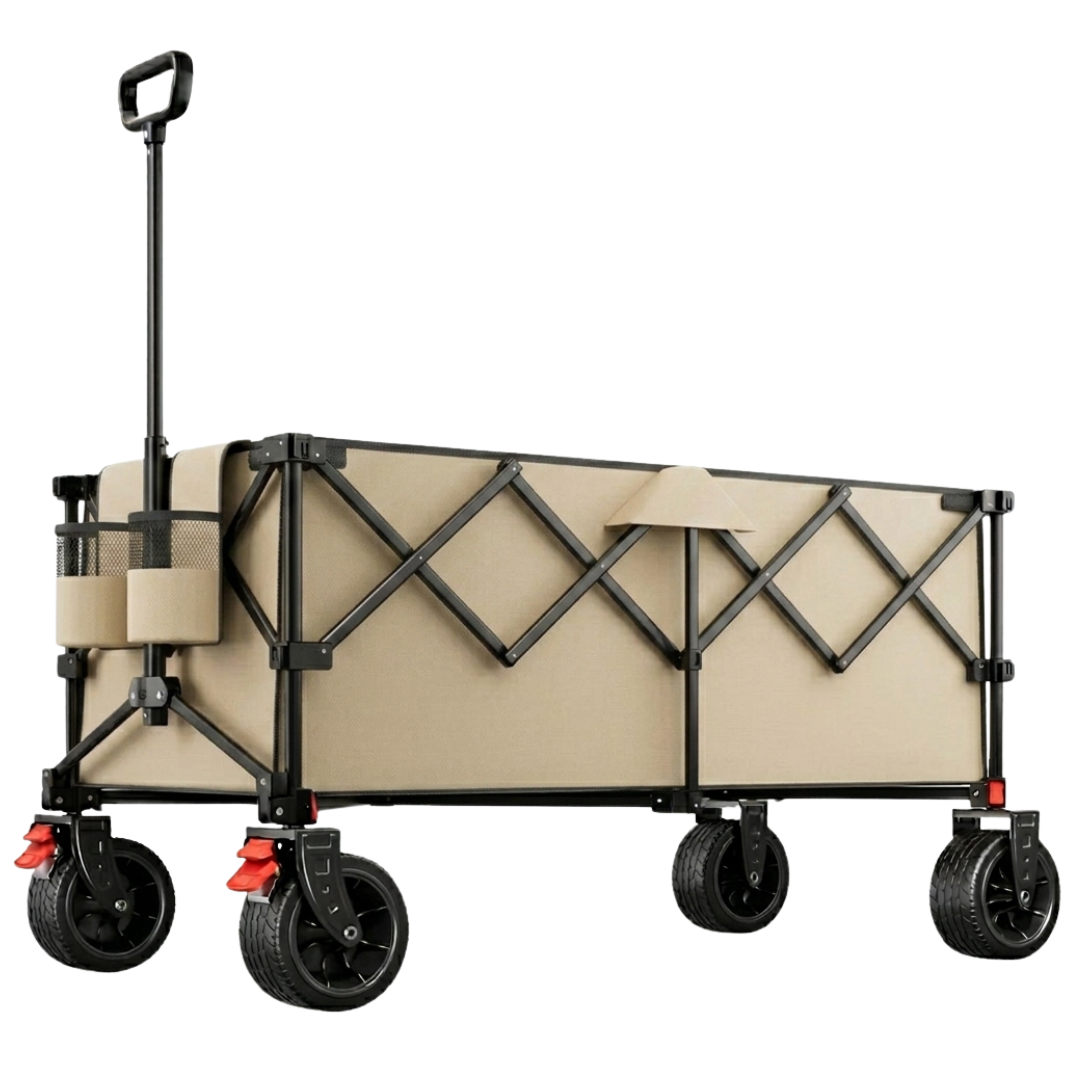

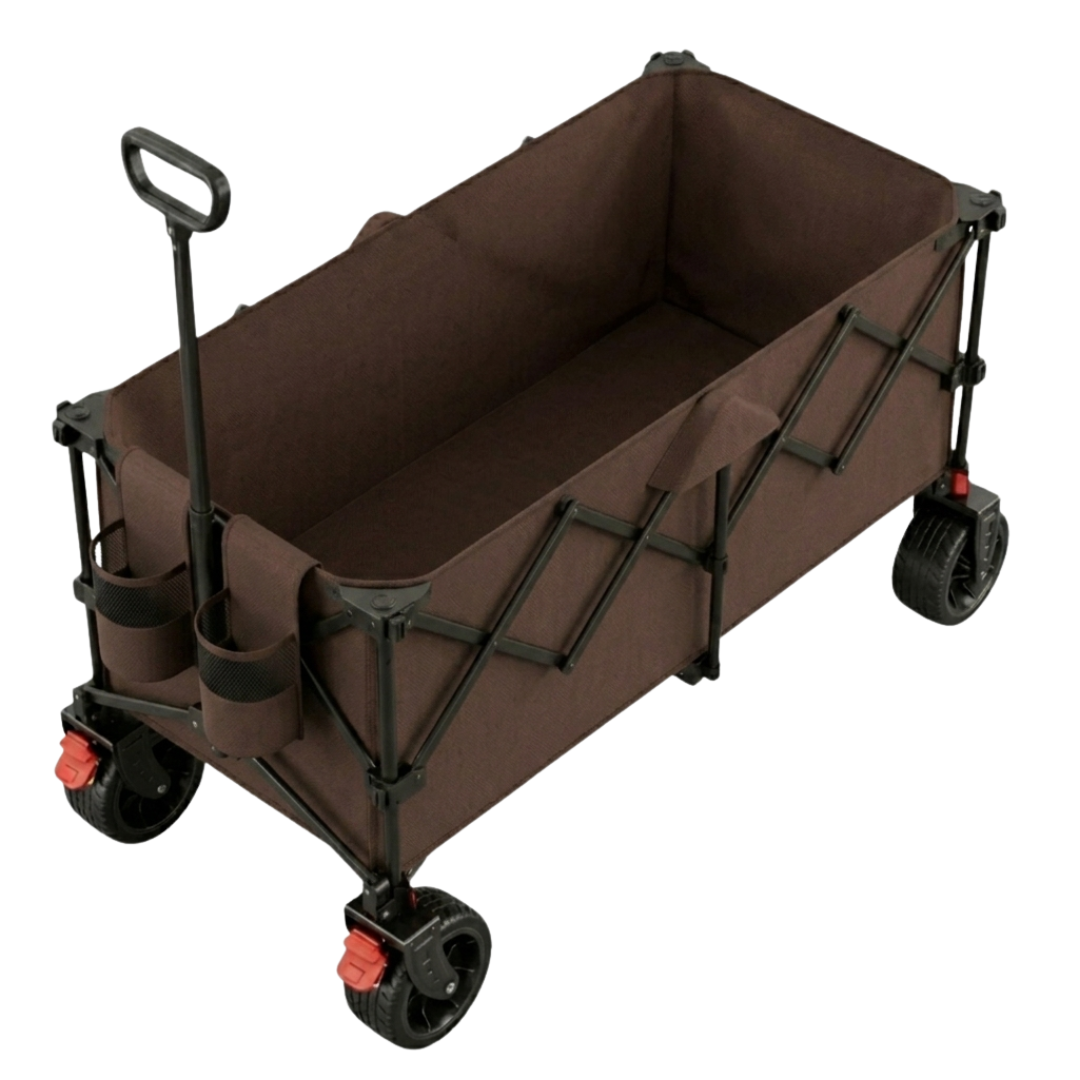

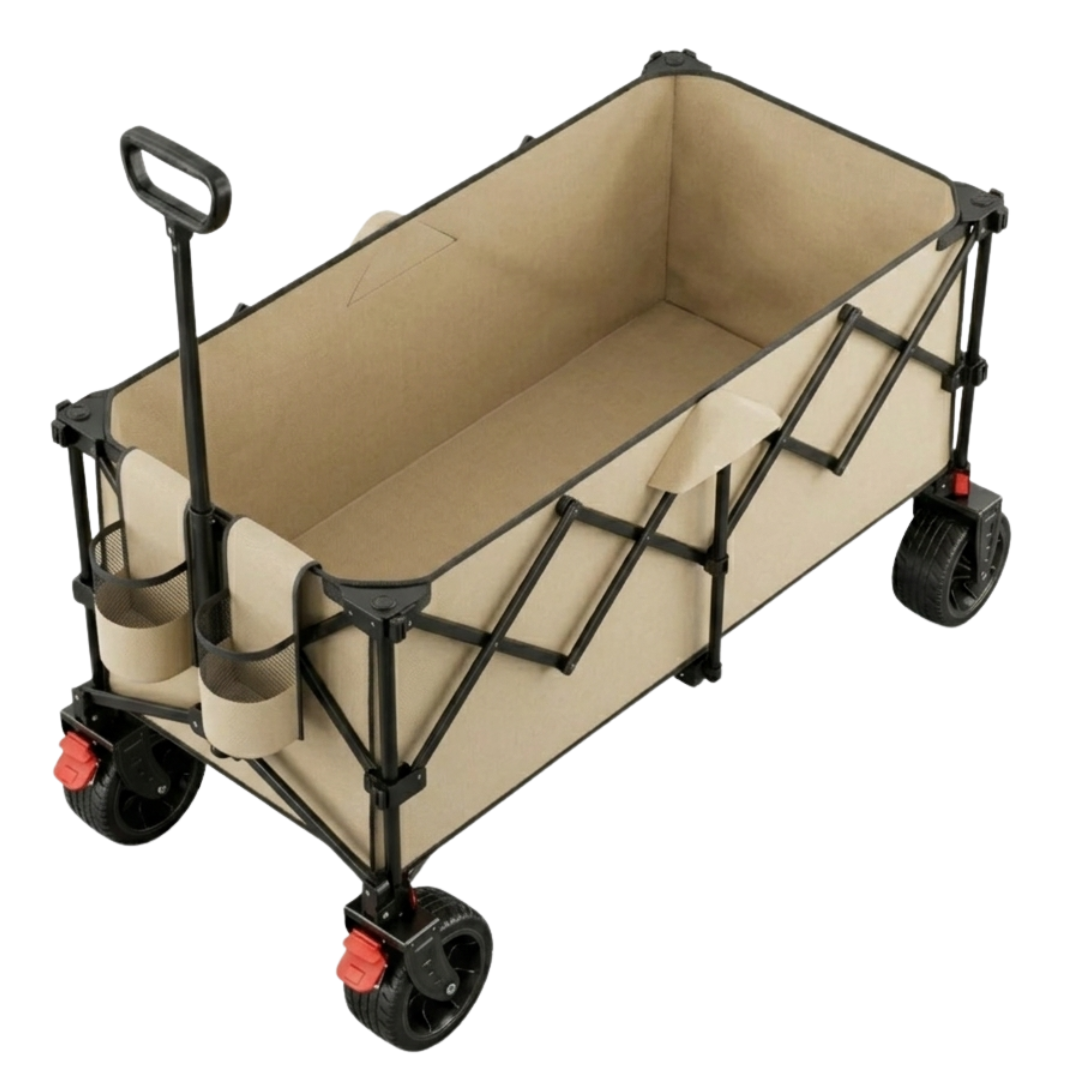

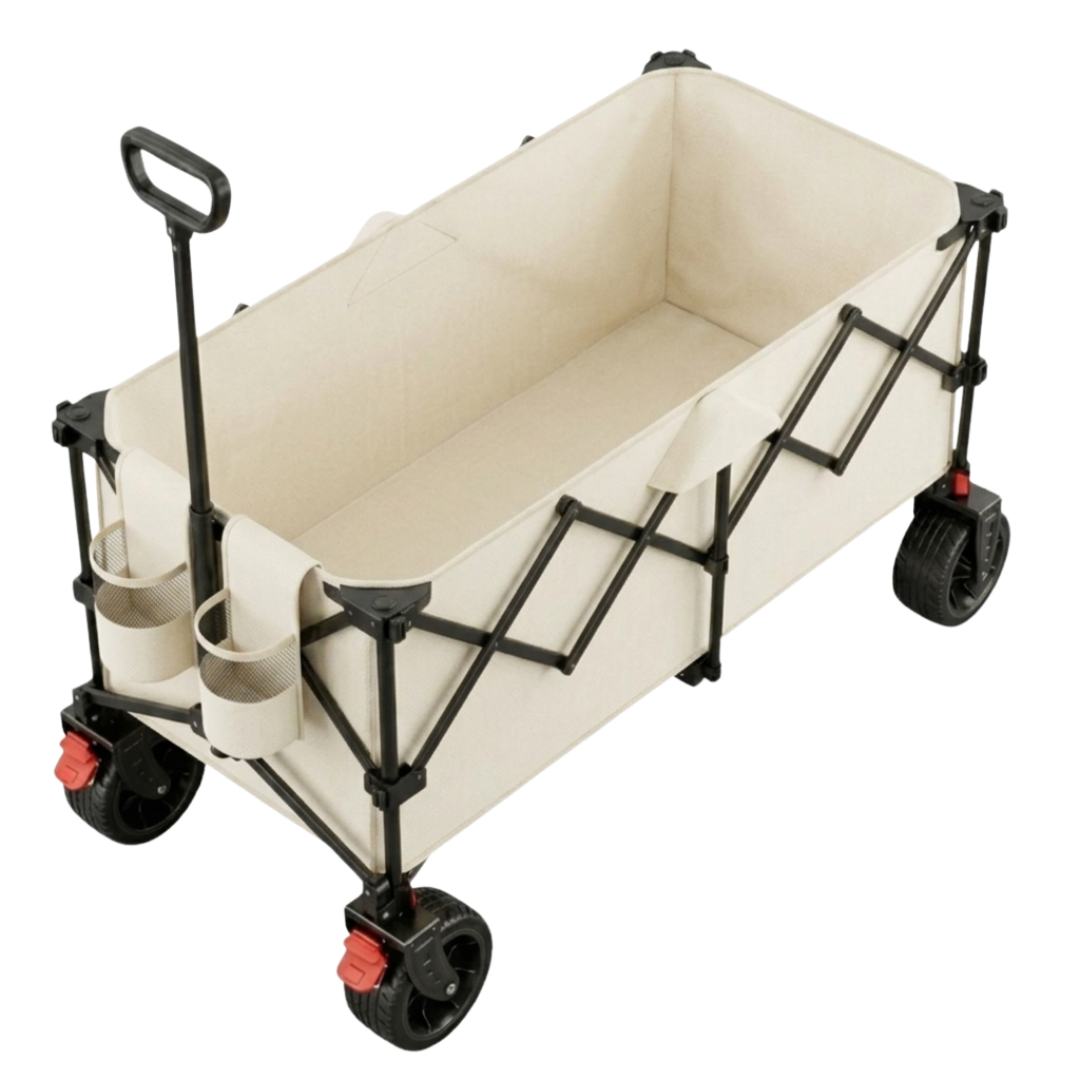

500 lb Folding Wagon Cart Alloy Steel Frame Transport Utility Unit

How the Frame Carries Load

The cart frame uses a carbon steel structure designed for up to 500 lb load rating across its main base rails. The cargo section follows a rectangular frame layout that maintains alignment during weight distribution. The body uses 400D Oxford fabric attached along perimeter anchor points connected to the steel tubing. Force transfer moves through the lower rail system into the axle housings.

Steering and Wheel Movement System

The wheel system includes pneumatic caster assemblies with 360° rotation on the front axle. Each wheel is mounted through dual bearing hubs that support directional rotation under steering input. Axle spacing supports rolling movement across sand, gravel, and grass surfaces. Handle adjustment operates between 18.1 in and 33 in through a sliding lock tube with defined position stops. Folding joints are positioned at two main hinge points along the side rails for transition into a stored configuration.

Folding Steps and Storage Position

The folding sequence reduces the frame into a stored envelope measuring 23.7 × 13.38 × 9 in. Side rails rotate inward through hinge articulation points while the base folds along a central pivot line. The handle detaches through a locking collar and aligns alongside the folded frame. Fabric panels compress within the folded perimeter without removal from the structure. The stored form fits vehicle trunk space or garage shelving areas.

Product Benefits

• Load Path System: Carbon steel frame channels weight through base rails and wheel contact points.
• Cargo Layout Zone: Rectangular frame structure provides a defined area for organizing transported items.
• Wheel Rotation System: Front caster wheels rotate 360° for directional steering control.
• Foldable Mechanism: Dual hinge points allow transition from operational mode to compact storage.
• Adjustable Handle: Sliding lock tube adjusts from 18.1 to 33 in for multiple pulling positions.

Specifications

• Unfolded Dimensions: 38.6 × 46.4 × 23.7 in
• Folded Dimensions: 23.7 × 13.38 × 9 in
• Handle Range: 18.1 to 33 in adjustable
• Product Weight: 18 lb
• Load Capacity: Up to 500 lb
• Wheel Type: 4 in pneumatic caster wheels
• Wheel Rotation: 360° swivel (front)
• Product Material: Carbon steel frame with 400D Oxford fabric
• Included Components: Folding wagon cart, detachable handle assembly
