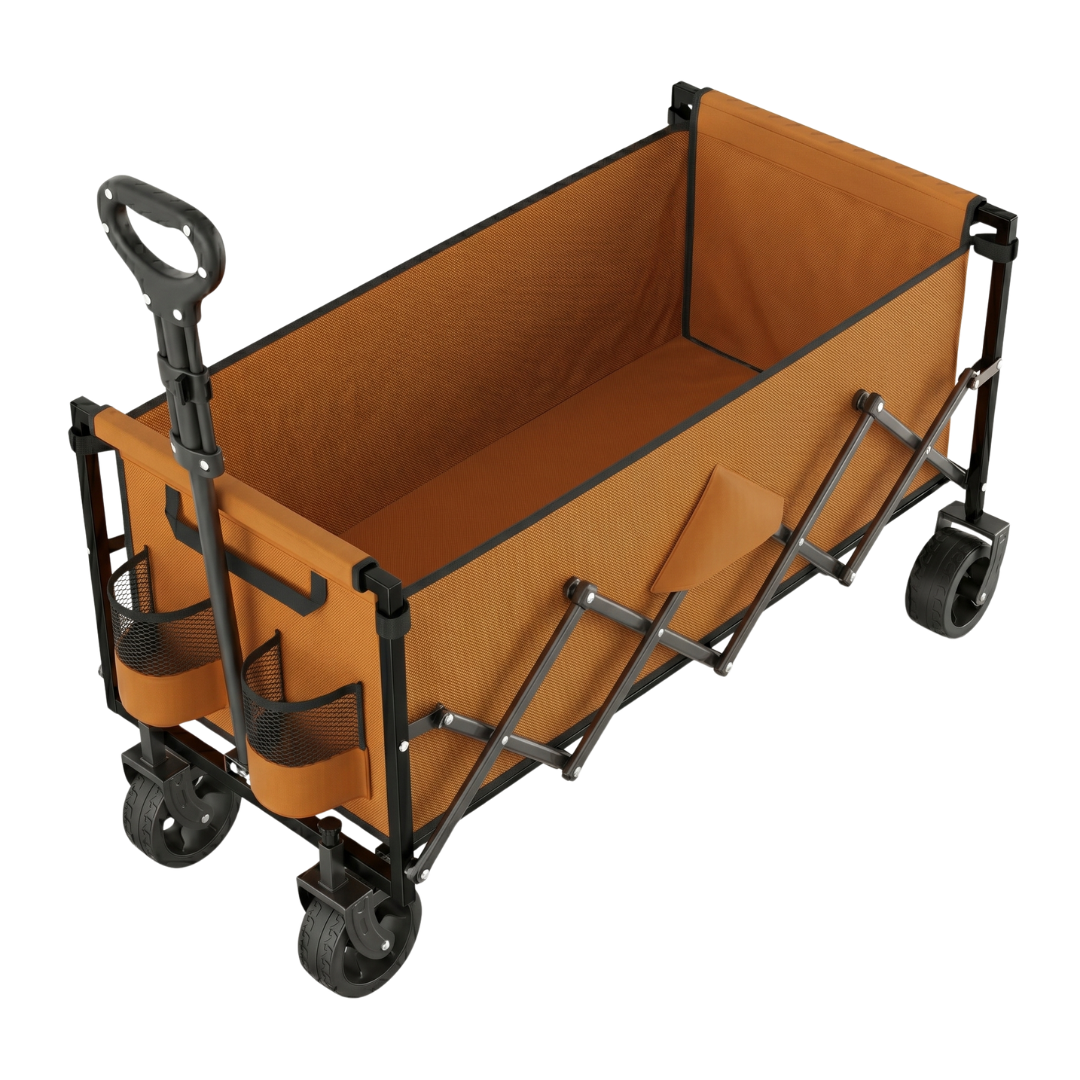

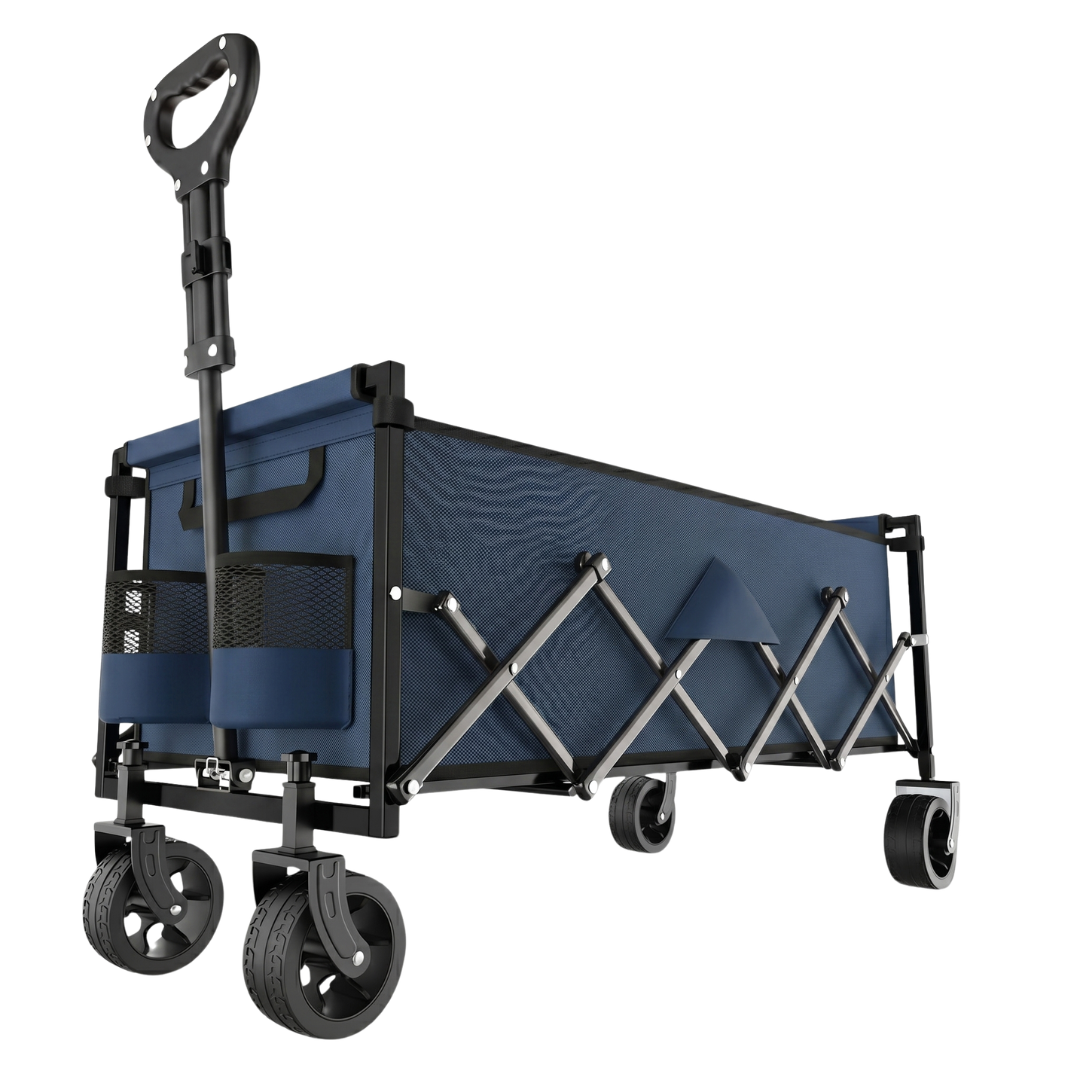

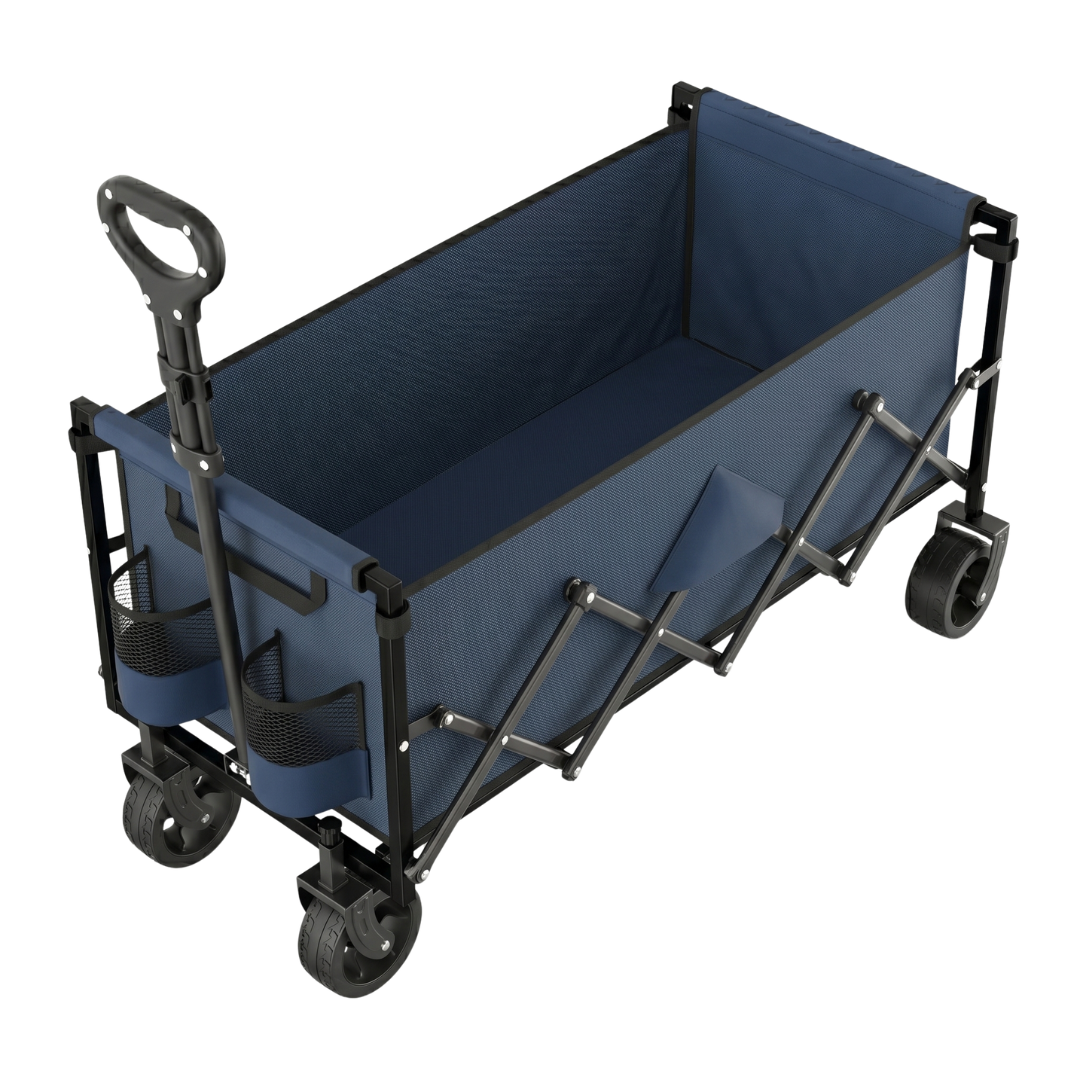

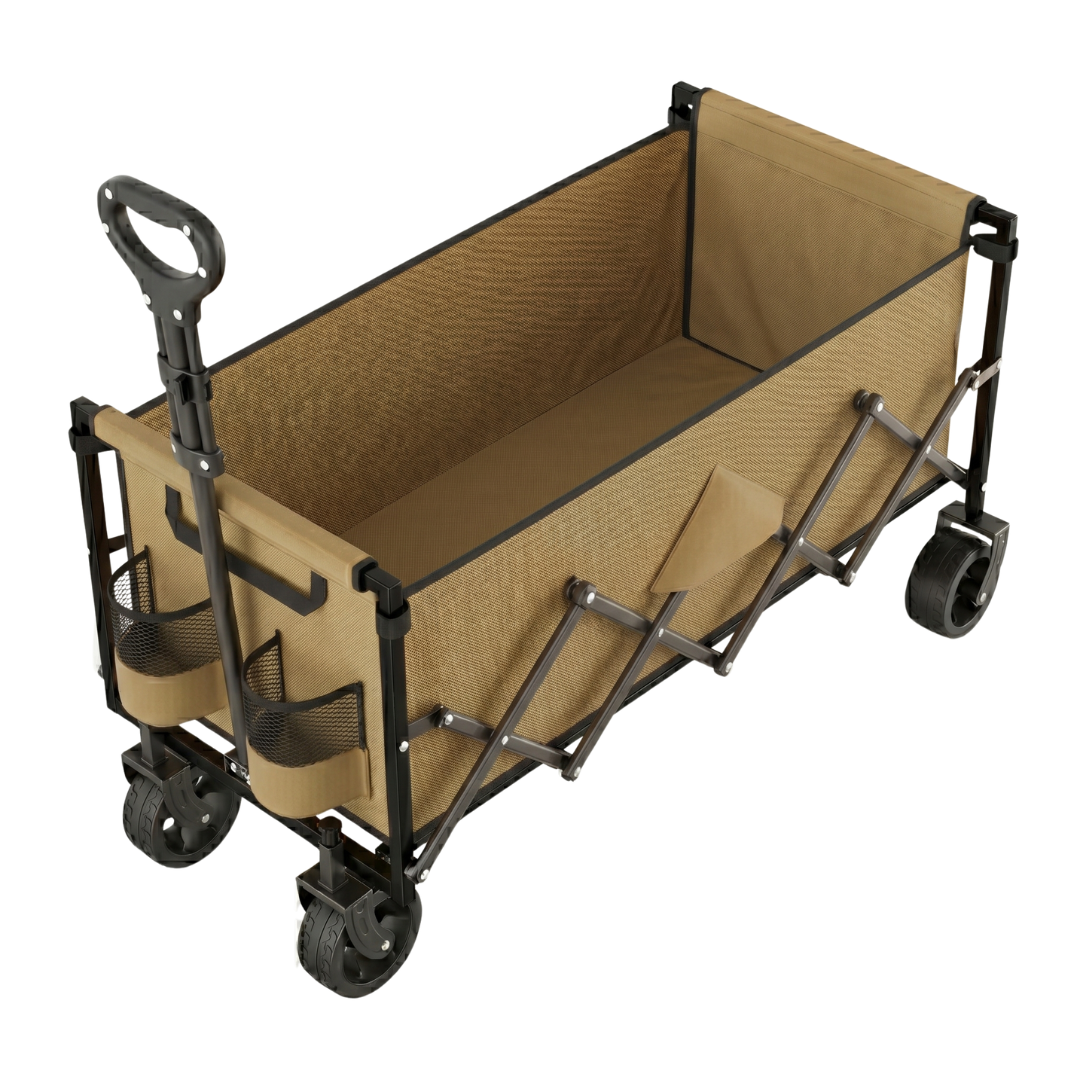

Foldable Utility Wagon Cart with Steel Frame and 480 lb Capacity

Load Path Behavior Across the Frame

This foldable wagon cart uses an alloy steel frame with 600D Oxford fabric panels to create a transport system for carrying tasks. The frame distributes weight through fixed support points and axle connections, supporting loads up to 480 lb. Four wheel mounts connect directly to the lower frame to maintain alignment across different surfaces. The steel alloy handle joint directs pulling force through the front frame for controlled movement. Two mesh holders provide quick access to bottles and small essentials.

Motion Sequence and Wheel Interface

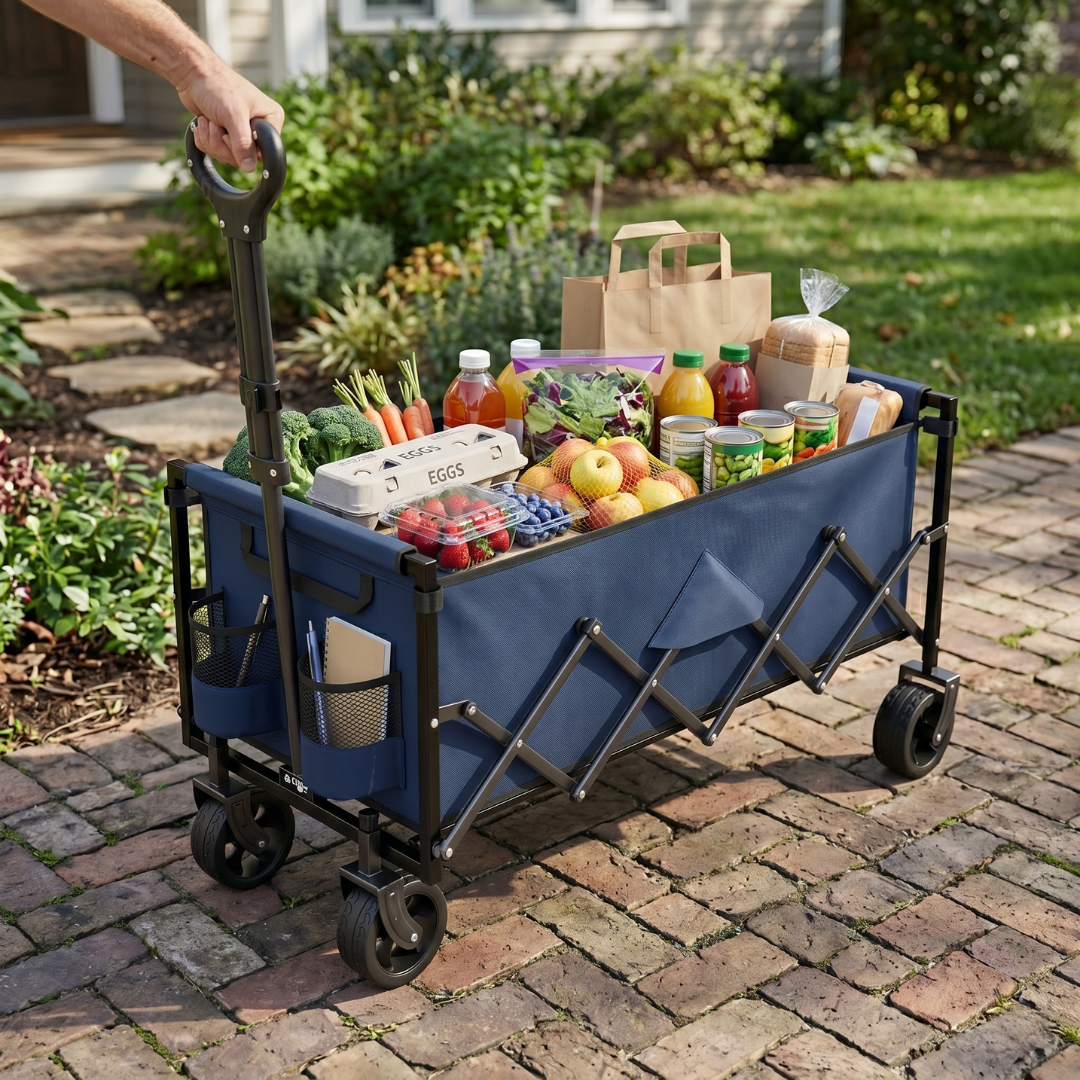

The four-wheel system is designed for use on grass, gravel, sand, mud, and pavement. Swivel caster movement allows smooth directional changes without lifting or repositioning the cart. The adjustable handle extends from 26.2 to 32.5 in, adapting to different pulling positions and terrain. The open compartment holds gardening tools, picnic supplies, beach gear, and household items. Its compact size fits easily into patios, garden paths, and backyard spaces.

Storage Configuration and Handling Process

A single hinge system allows the wagon to fold and unfold without tools. When folded, it measures 7.8 × 15.4 × 31.7 in, making it simple to store in vehicles, garages, or closets. The fabric panels can be removed for rinsing and reattached after cleaning. The steel frame stays intact during folding, simplifying setup between uses. The handle locks into position within its adjustment range for quick changes. Reassembly follows the reverse folding process, allowing the cart to be ready for use.

Product Benefits:

• One Trip Load Handling: Moves multiple bags, tools, and supplies together in one trip.
• Shared Family Transport: Carries picnic gear, toys, and travel items in a single unit.
• Group Outing Organization: Holds equipment for beach trips, park visits, and outdoor gatherings.
• Indoor to Outdoor Transfer: Transfers items between home, garage, yard, and vehicle with fewer trips.
• Centralized Item Storage: Keeps items grouped in one place during transport.

Specifications:

• Load Capacity: Up to 480 lb
• Product Weight: 22 lb
• Unfolded Dimensions: 34 × 15.4 × 38 in
• Folded Dimensions: 7.8 × 15.4 × 31.7 in
• Wheel Size: 4.7 in Dia × 2.0 in W
• Handle Range: 26.2 to 32.5 in
• Material: Alloy steel frame with 600D Oxford fabric panels
• Folding System: Single-action hinge folding mechanism
• Cleaning Method: Detachable fabric panels for rinsing and reattachment
