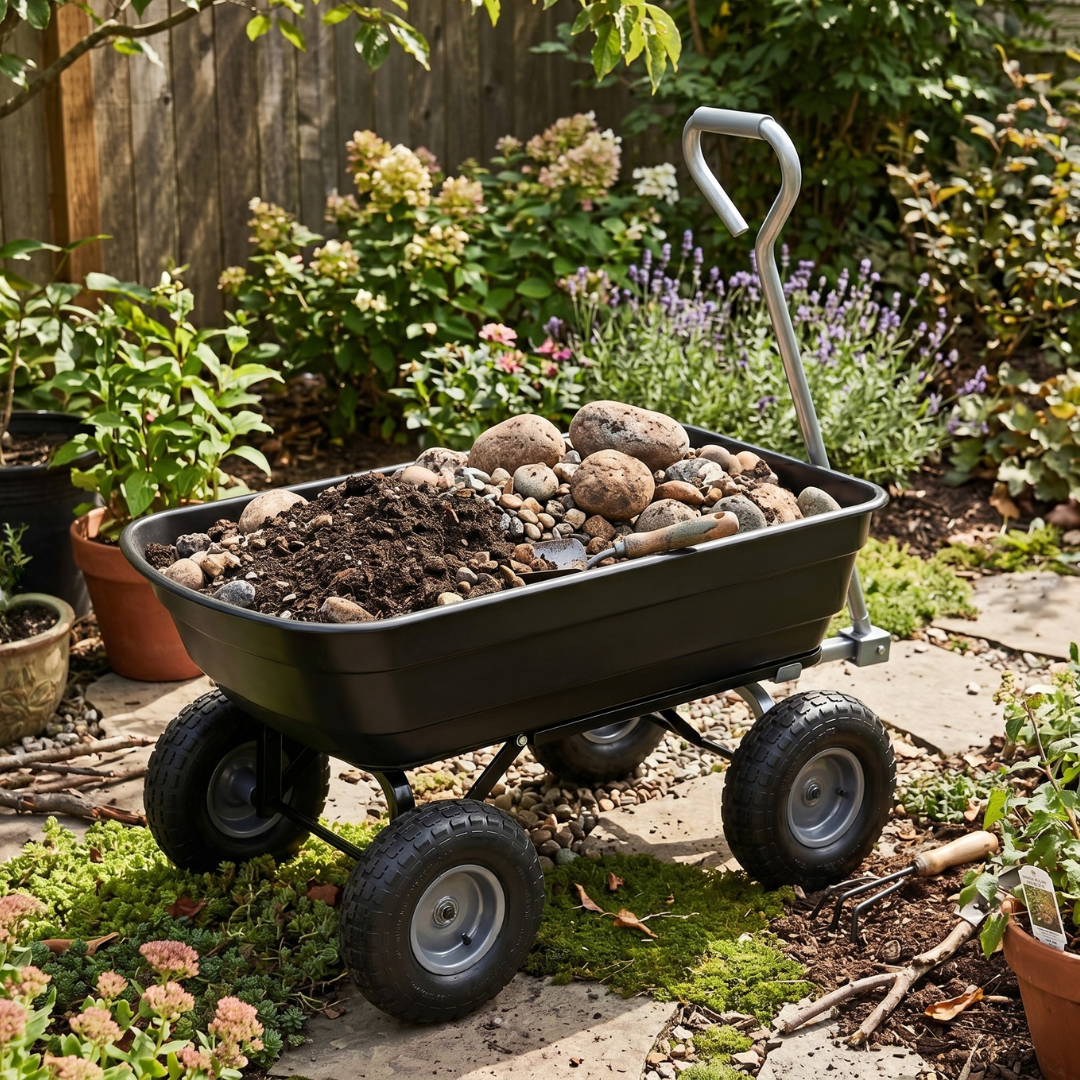

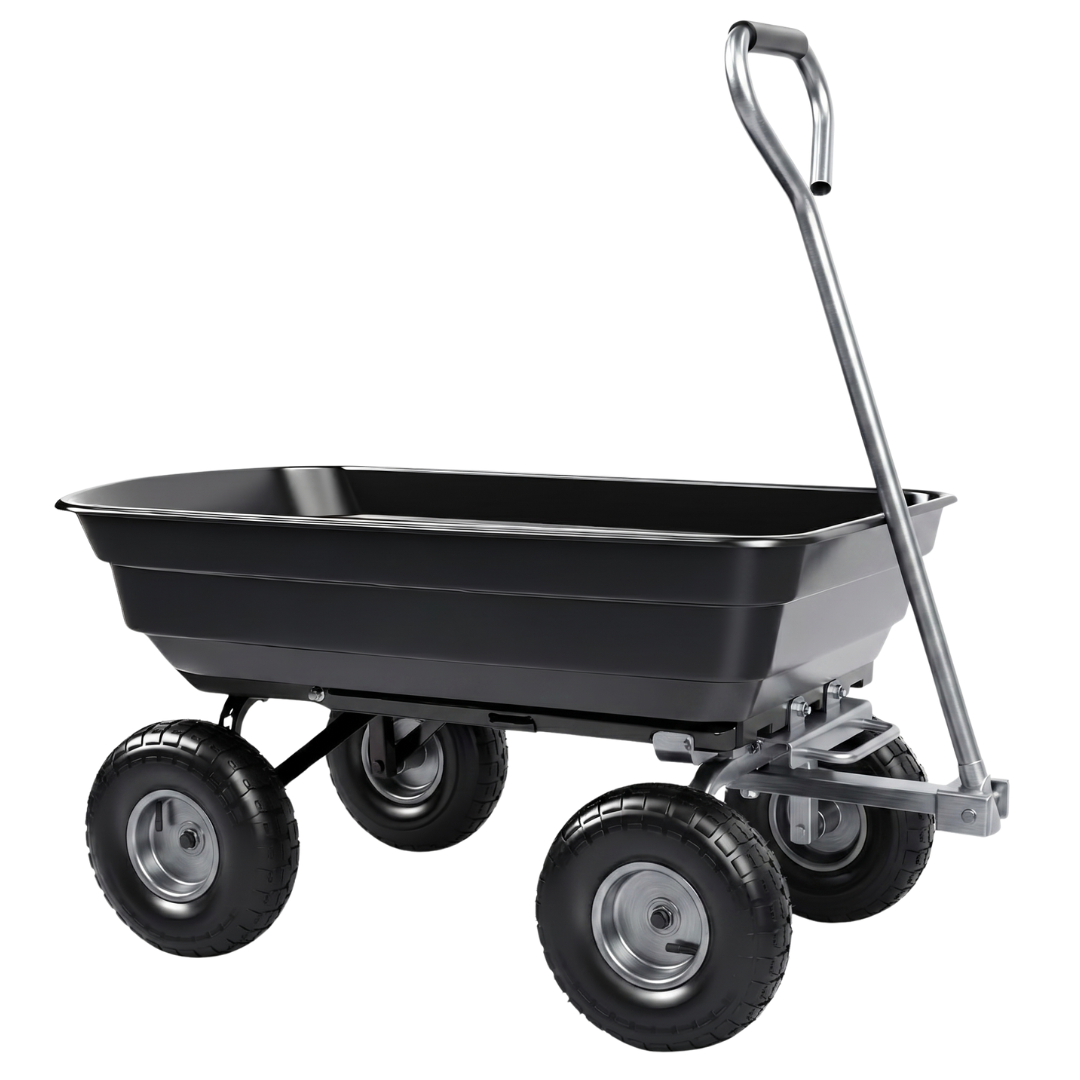

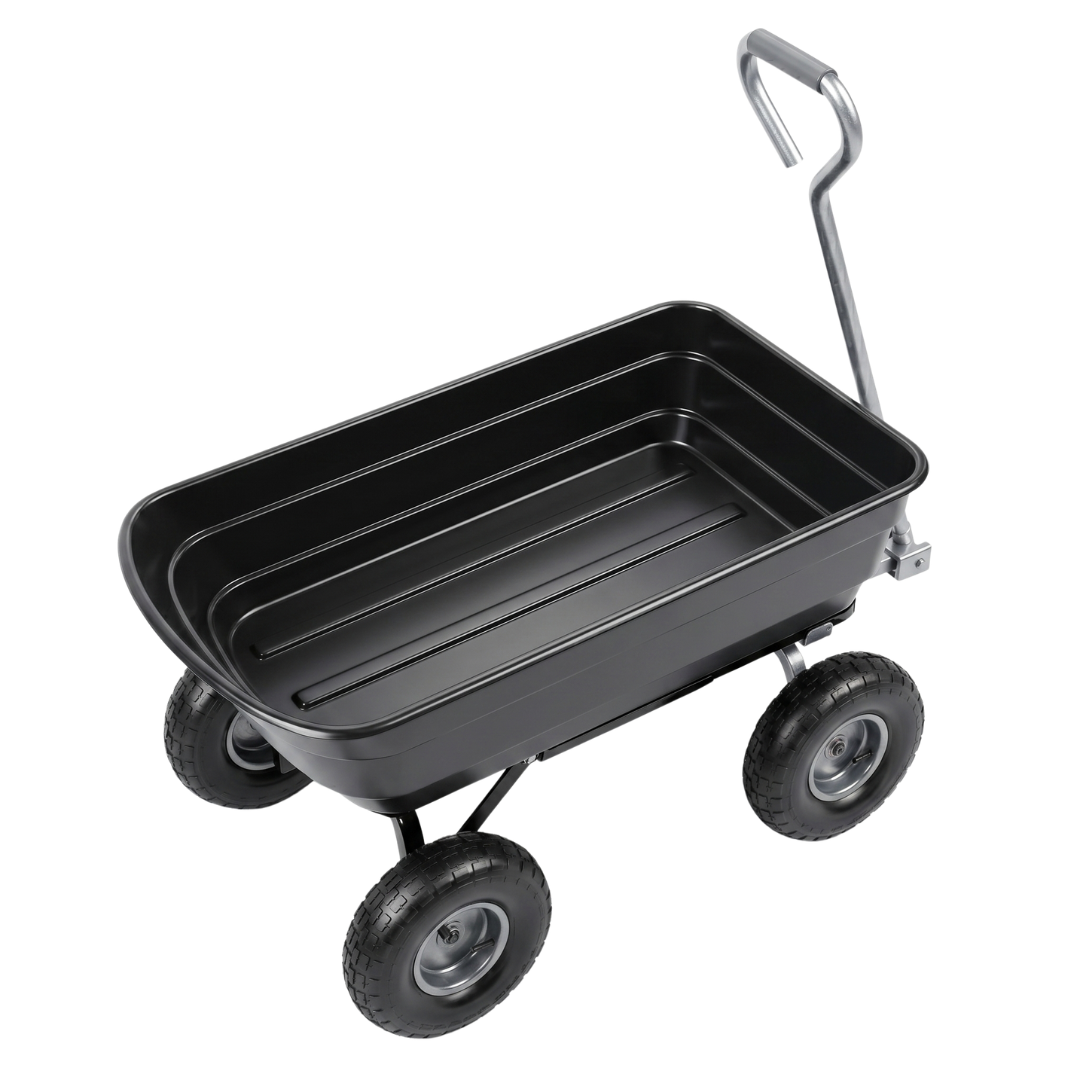

Steel Frame Utility Wagon Cart 600 lb Capacity Garden and Yard Use

Load Support Layout

This wagon cart uses a steel frame layout configured to carry loads up to 600 lb across a flat bed platform. The structure distributes weight across four ground contact points to maintain alignment during movement. The dump bed is fixed within the frame until activated at the rear pivot joint. The handle assembly connects directly to the front axle linkage for steering input transfer. The system is arranged to keep load position stable during transport across mixed surfaces.

Steering and Dump Function

A 180° rotating handle controls the front axle direction through a direct linkage system. Steering response is transmitted through a fixed connection point that guides wheel orientation. The dump bed uses a rear hinge point that allows forward rotation for unloading materials. The 10 in pneumatic wheels with air filled chambers support rotation across gravel, soil paths, and flat ground surfaces. The tubeless wheel setup maintains continuous movement across varying surface textures.

Assembly Structure and Storage Position

Frame sections connect through aligned bolt points that define the assembly sequence. Each joint is positioned to maintain consistent spacing across the base and support rails. The handle folds along a fixed hinge axis for storage position. Steel components are arranged in a fixed geometry that allows repeated fastening using standard tools. The open bed layout allows direct access for cleaning without removing structural parts.

Product Benefits:

• 600 lb Load Capacity: Supports up to 600 lb of materials per load.
• Task Consolidation: Moves more tools, supplies, and debris at once.
• Manual Handling: Simplifies loading, transport, and unloading tasks.
• All-Terrain Mobility: Travels smoothly across grass, gravel, and packed soil.

Specifications:

• Dump Bed Size: 37 x 20 in
• Handle Length: 32.3 in
• Weight: 25.4 lb
• Load Capacity: Up to 600 lb
• Wheel Type: 10 in pneumatic tubeless
• Material: Steel frame structure with fixed joint layout
